Obtaining root on a Q-See-QT428-418-5 CCTV DVR

I have had this DVR for several years with no problems. My only disappointment was the lack of web APIs to integrate it into other home automation projects. I had read that older versions of the FW (I have 3.2.0) had a telnet deamon enabled with some default password. I have also read recently that many DVRs have been exploited, but I did not want to go into a guessing game so I decided to do a hardware hack.

DVR hardware overview

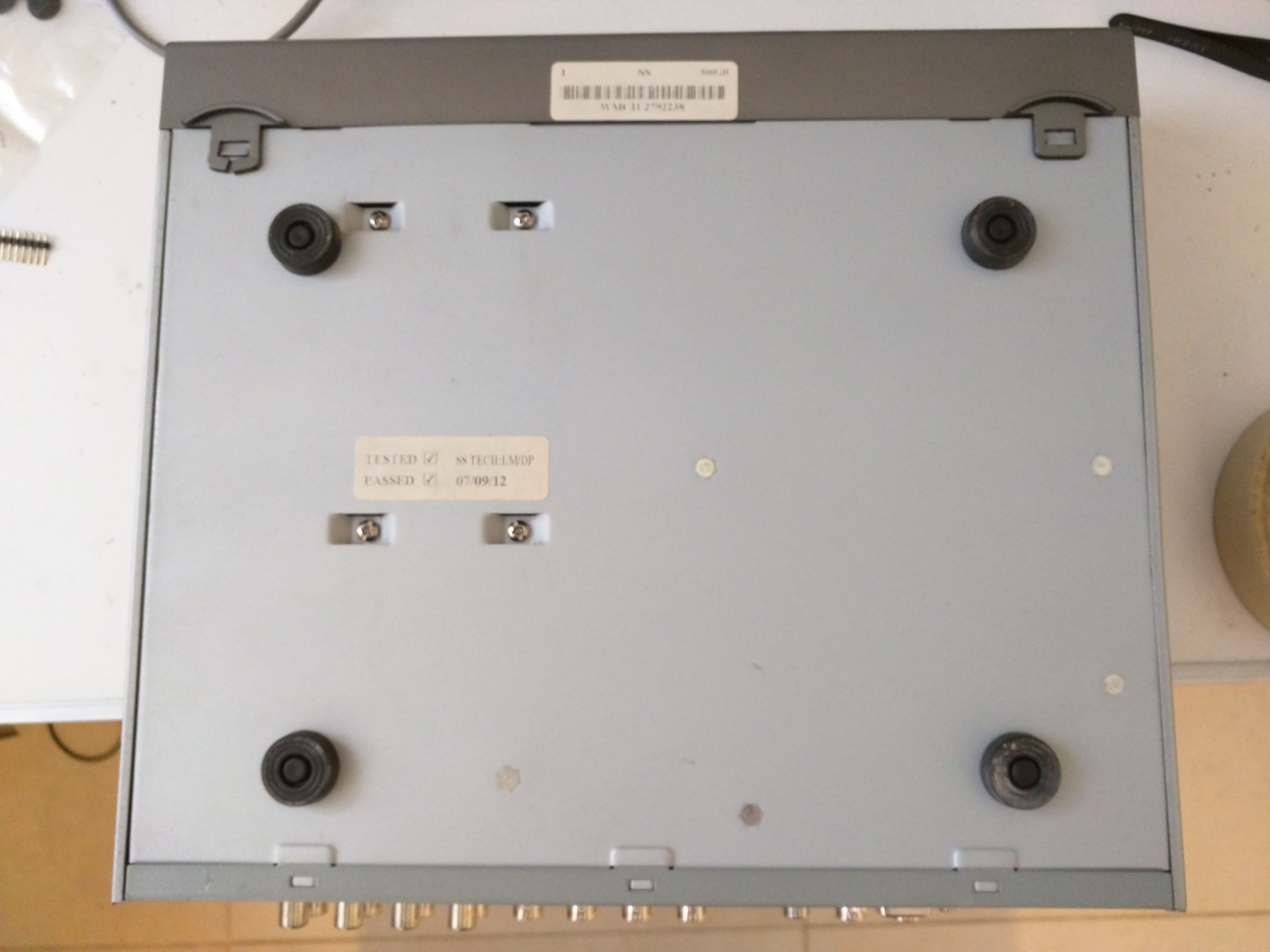

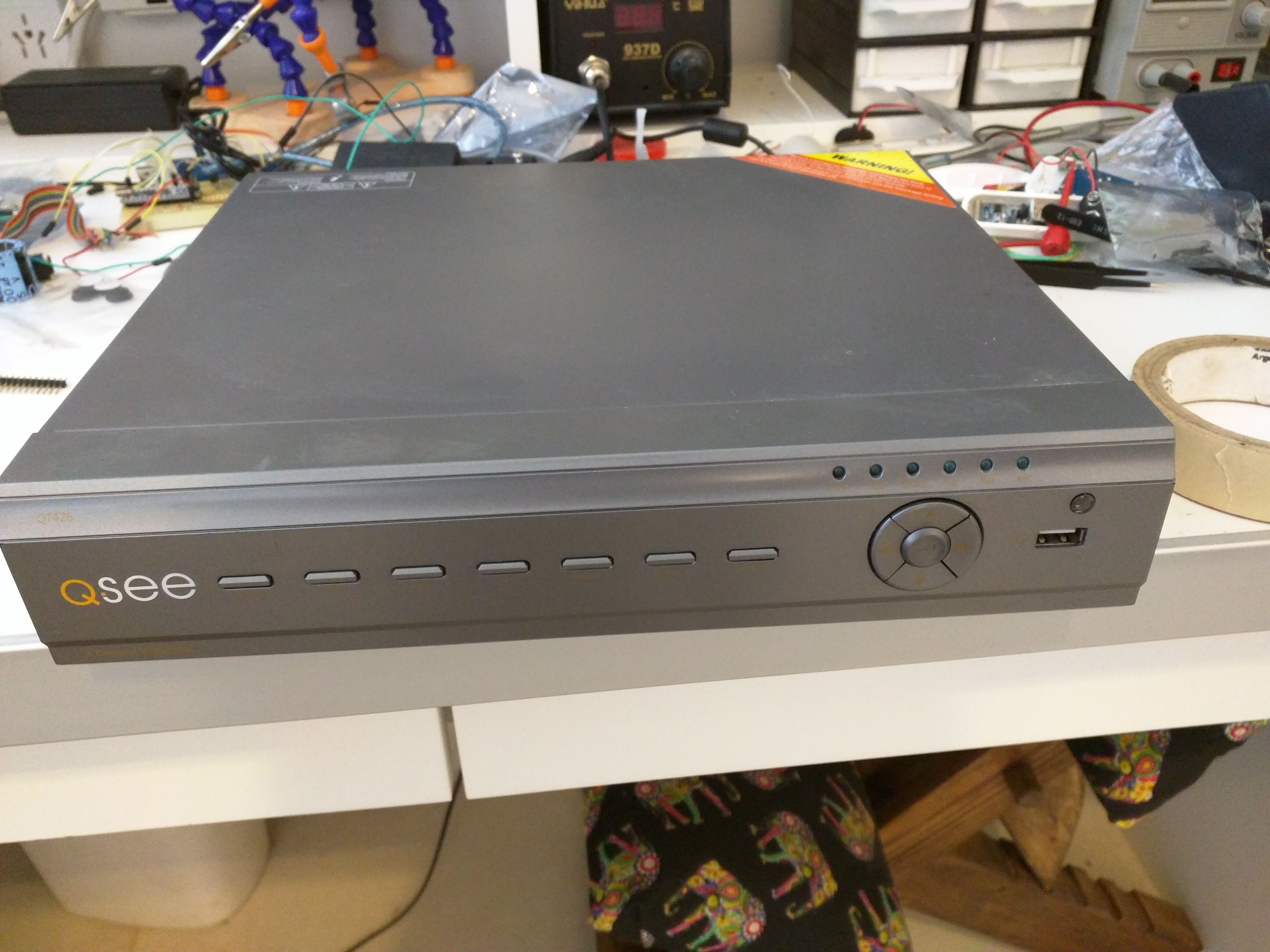

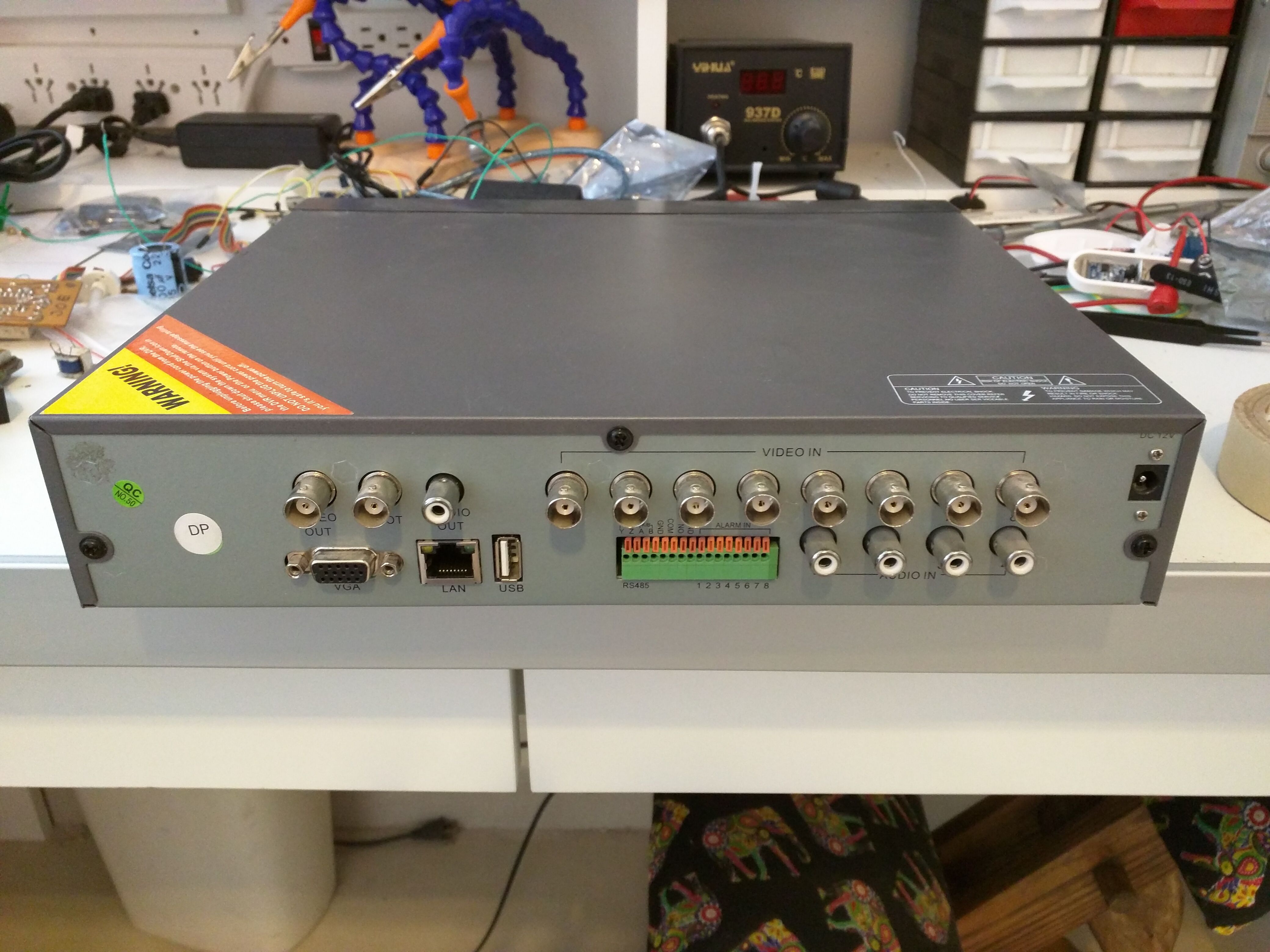

First let’s look at some pics to identify the hardware

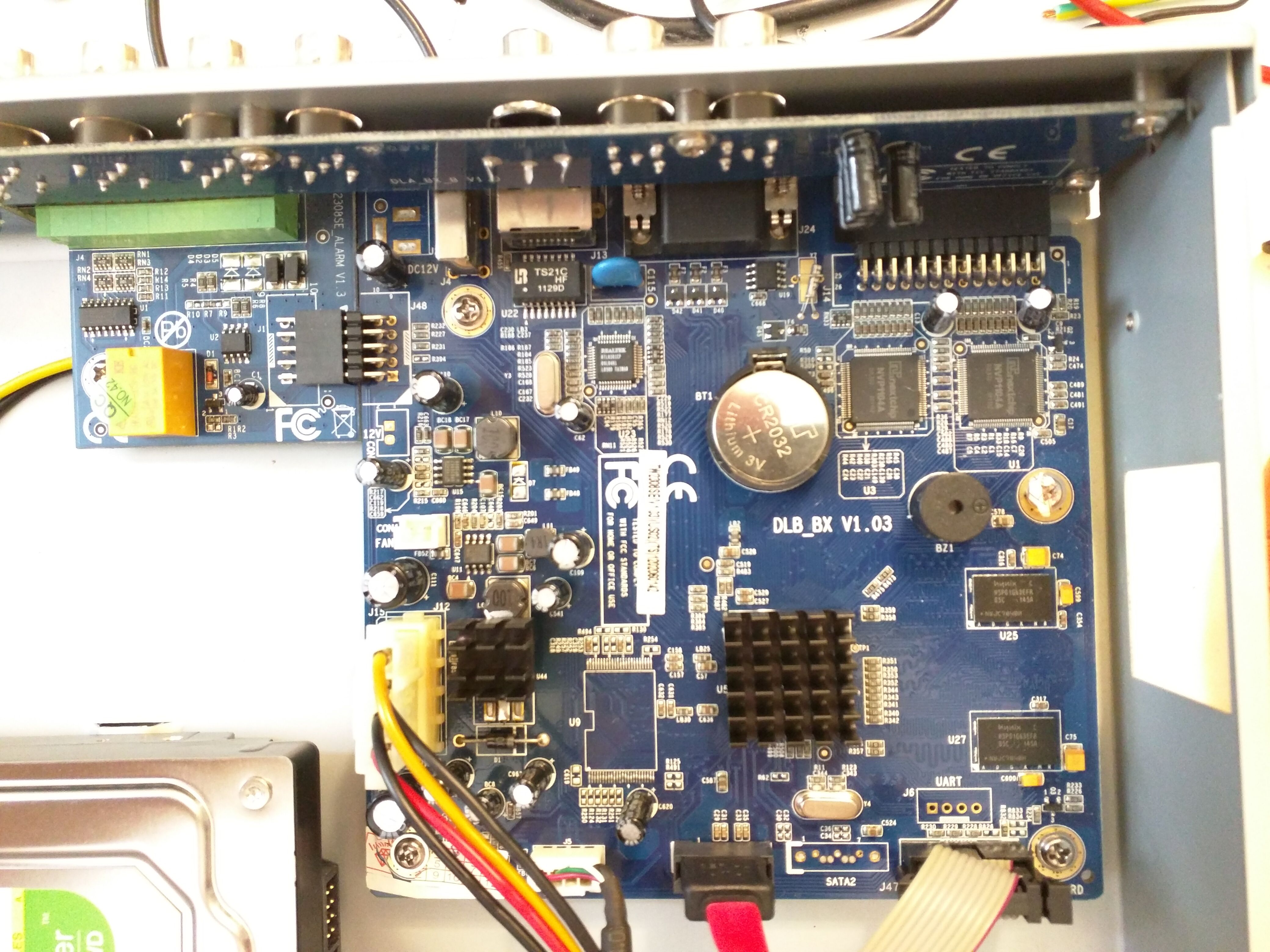

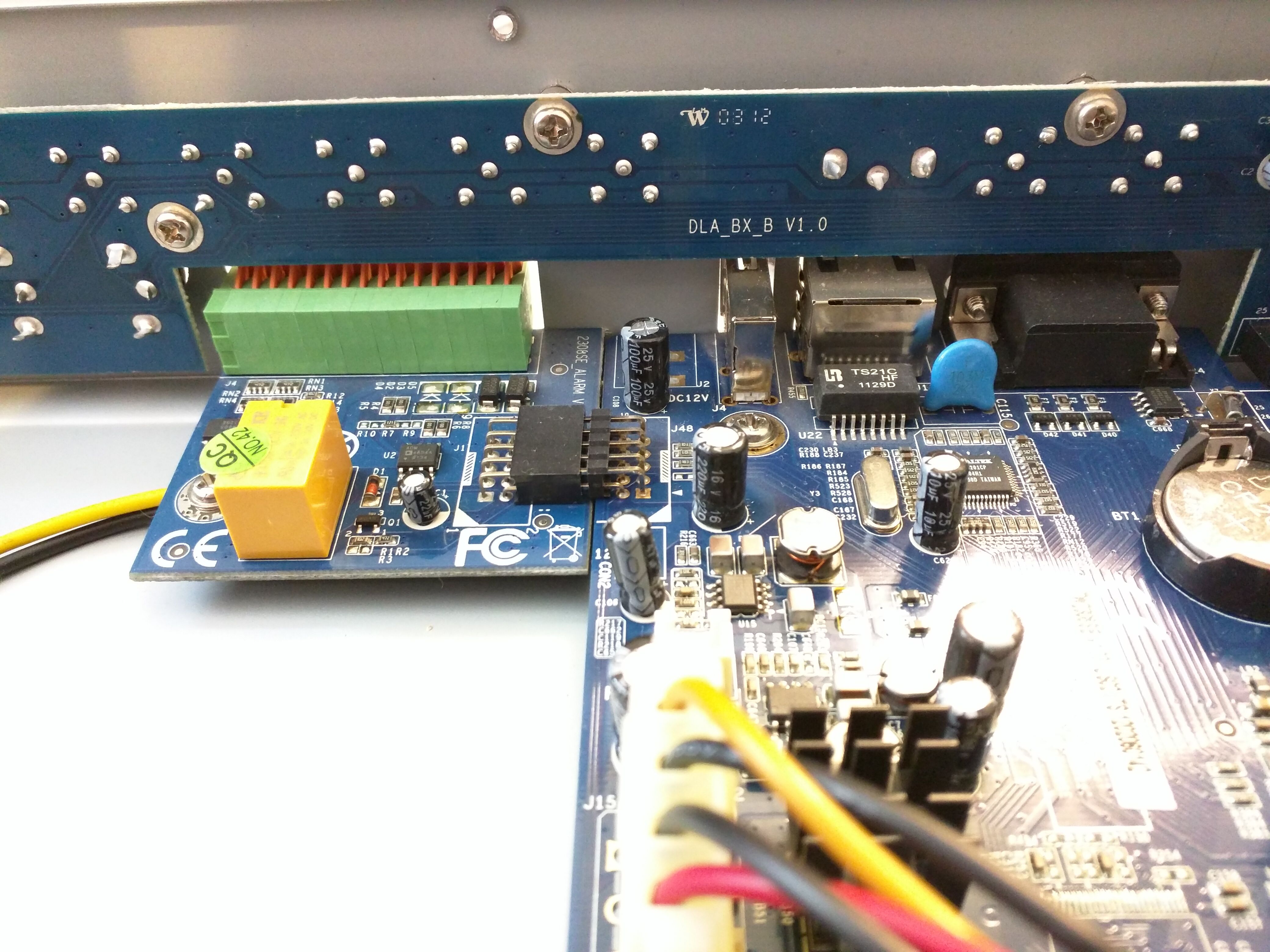

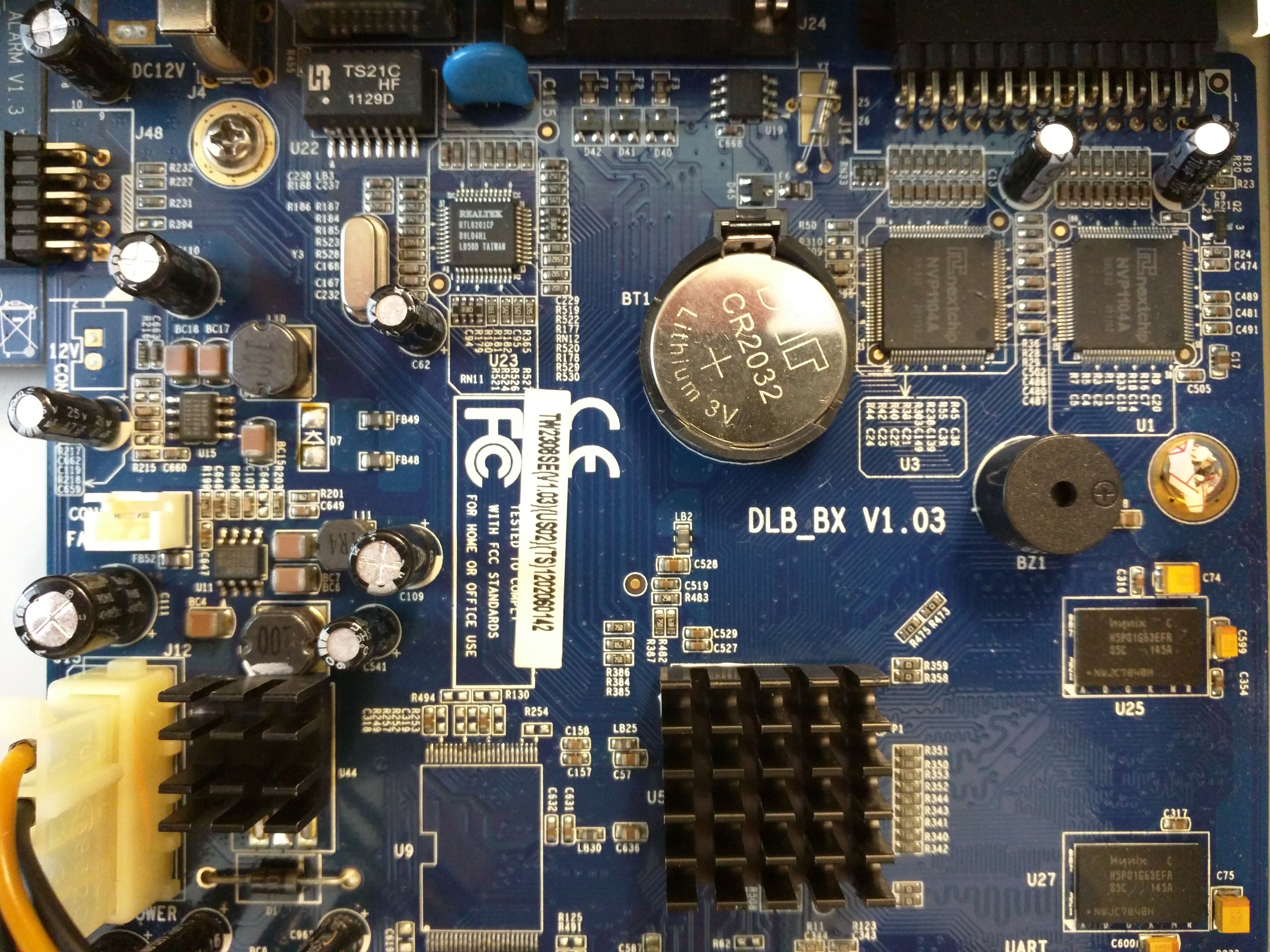

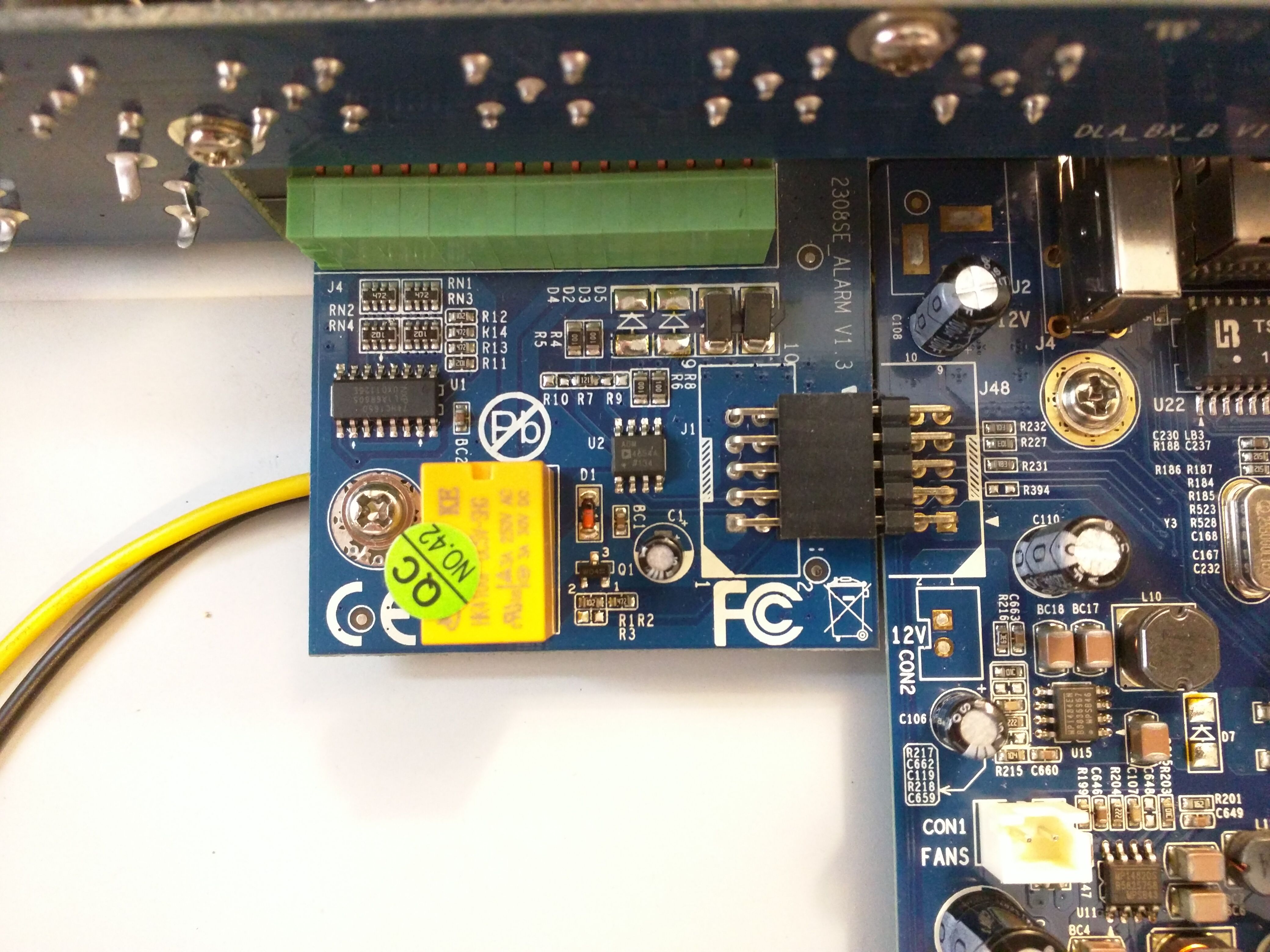

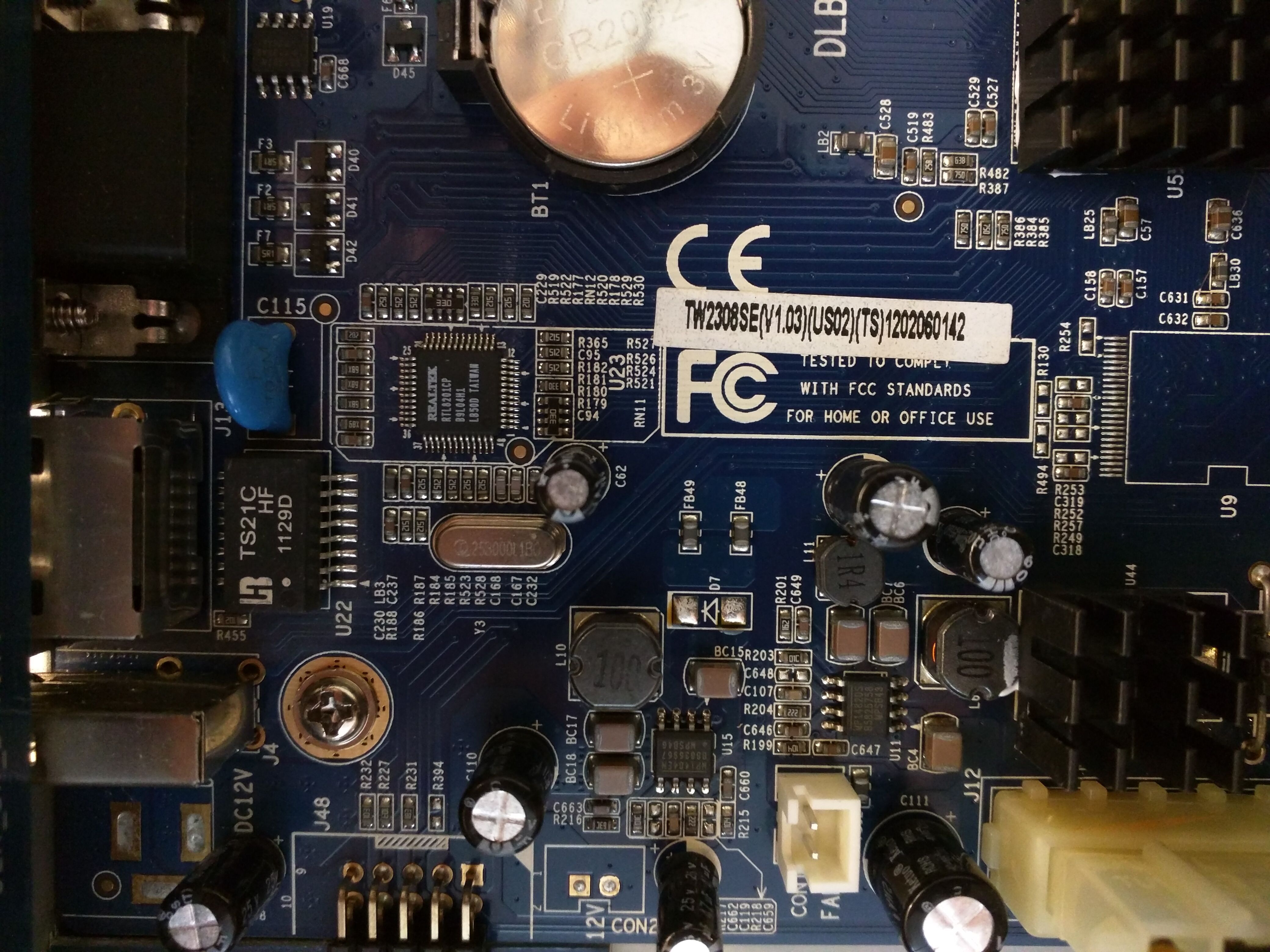

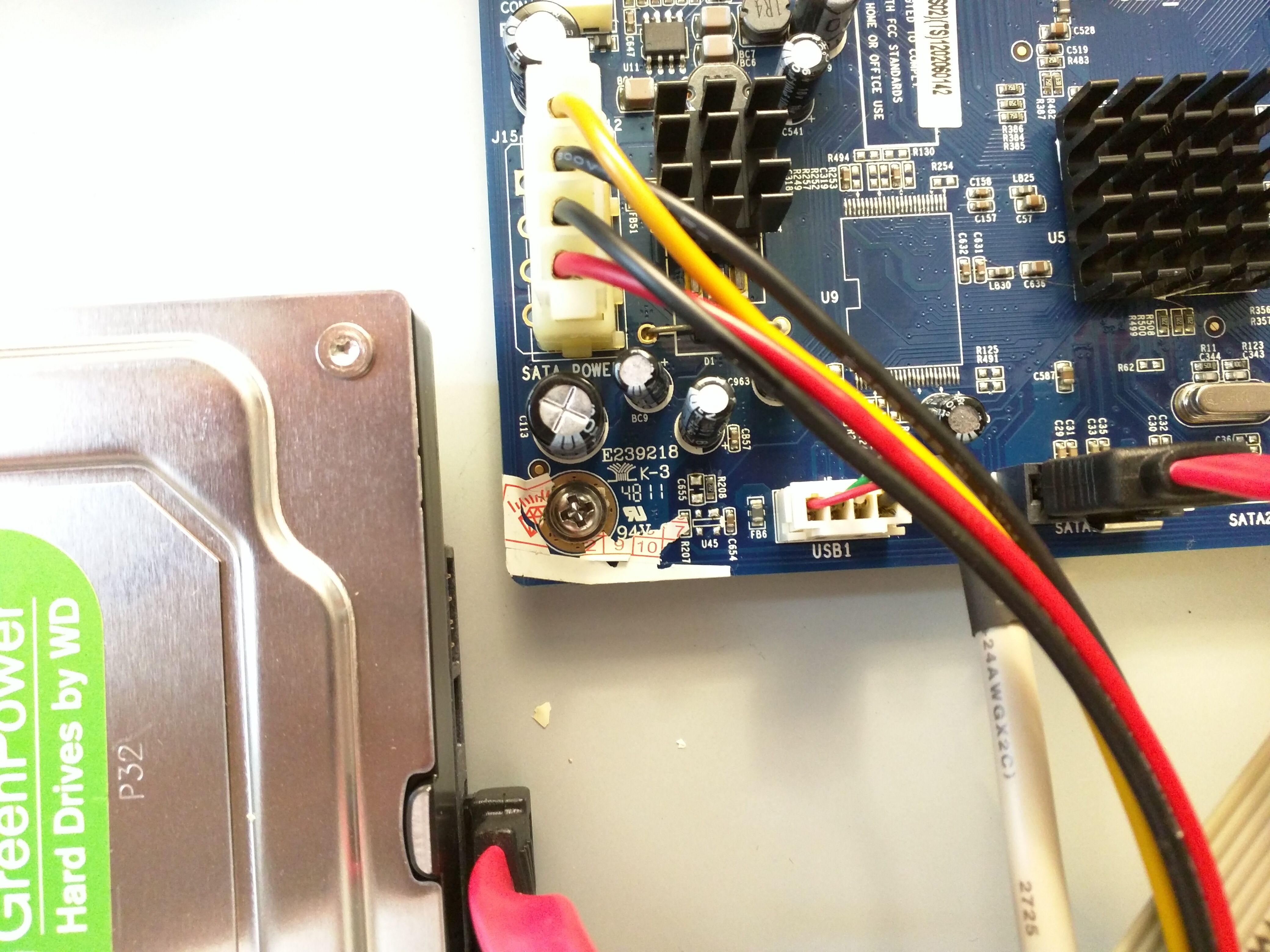

Here is the inside. Based on the marking I figured out that this model has been sold under other brands like BV security 2308SE-SL DVR and Cop USA DVR2308SE-SL. In particular Q-See seems to be the low end line of DAHUA.

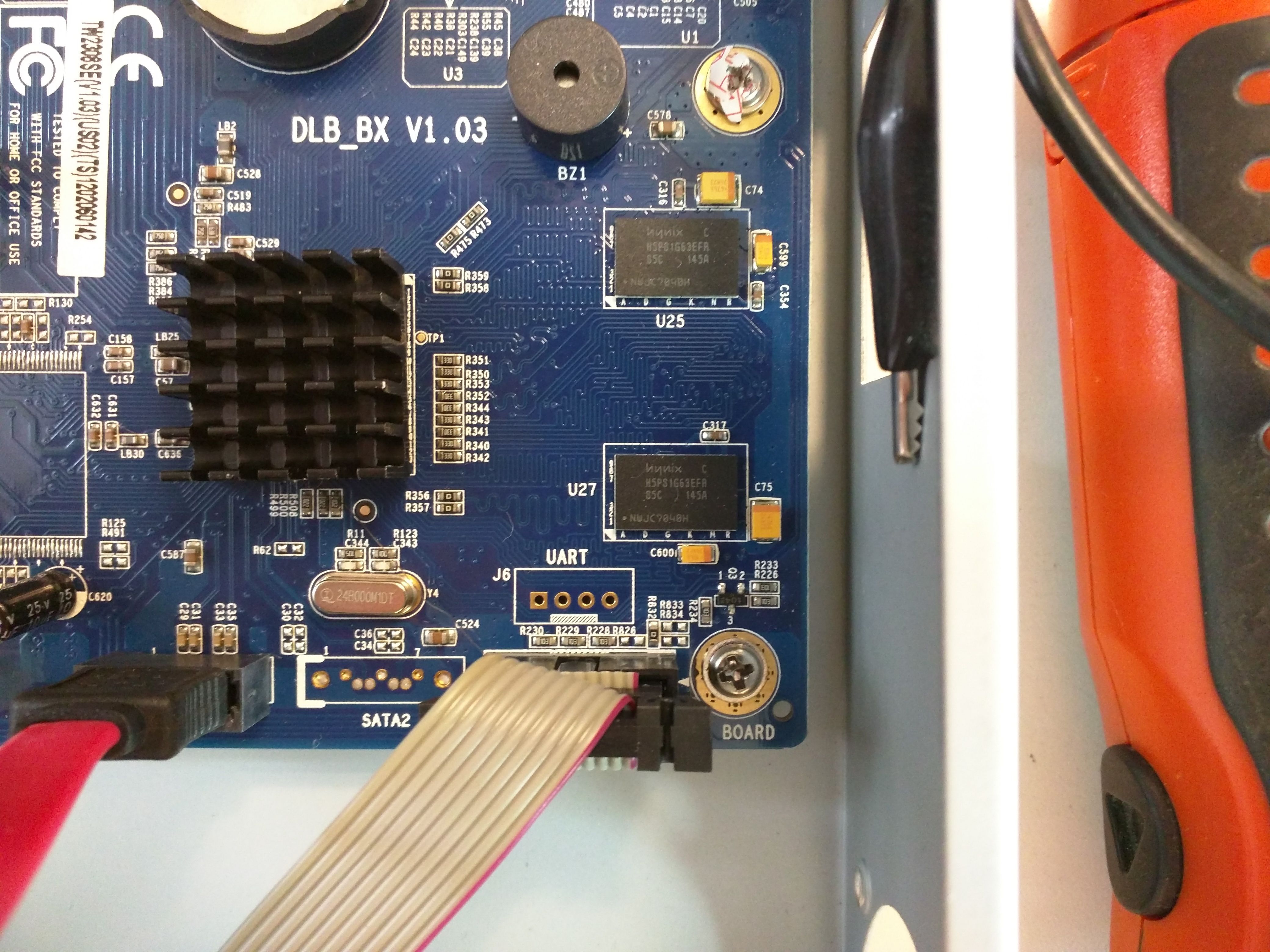

And finally what I was looking for a UART port!!

Using an oscilloscope I was able to determine the pin-out as follow (from left to right)

  1. VCC 3.3v (square hole)
  2. RX (3.3v levels)
  3. TX (3.3v levels)
  4. GND/Chassis

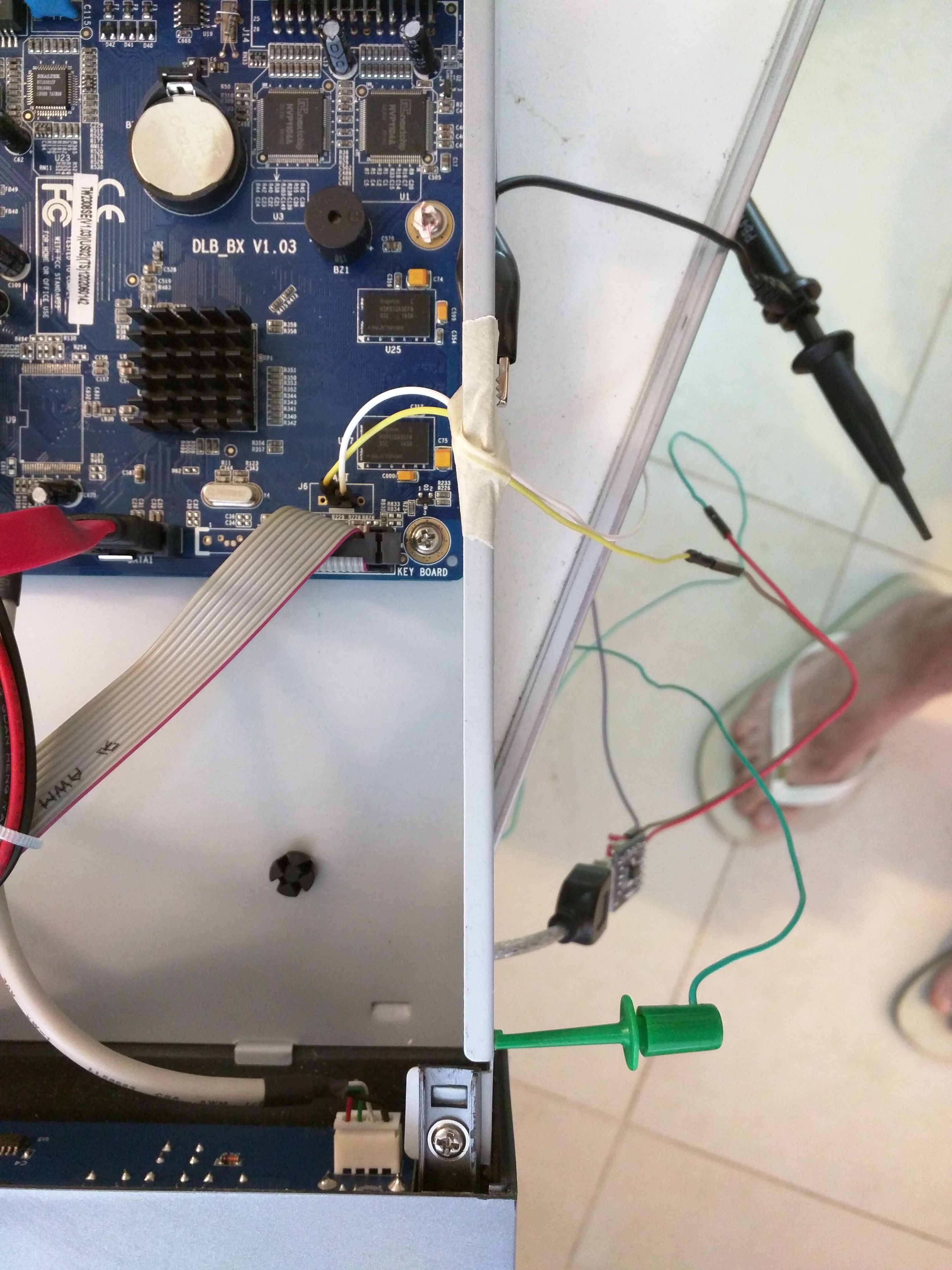

Then I hooked it up to a USB-TTL dongle and figured out that the communication speed was 115kbps. and more important we got a root console!!!!

Understanding the firmware

Using putty as a serial terminal I was able to tell that the firmware is based on hilinux and in particular that the hardware architecture is based on the hi3515 chip.

$ uname -a

 Linux (none) 2.6.24-rt1-hi3515v100 #201010220920 Thu Mar 15 03:54:45 EST 2012 armv5tejl unknown

$ cat /proc/cpuinfo

 Processor       : ARM926EJ-S rev 5 (v5l)

 BogoMIPS        : 219.54

 Features        : swp half thumb fastmult edsp java

 CPU implementer : 0x41

 CPU architecture: 5TEJ

 CPU variant     : 0x0

 CPU part        : 0x926

 CPU revision    : 5

 Cache type      : write-back

 Cache clean     : cp15 c7 ops

 Cache lockdown  : format C

 Cache format    : Harvard

 I size          : 16384

 I assoc         : 4

 I line length   : 32

 I sets          : 128

 D size          : 16384

 D assoc         : 4

 D line length   : 32

 D sets          : 128

 Hardware        : hi3515v100

 Revision        : 0000

 Serial          : 0000000000000000

The boot sequence is

  1. /etc/init.d/rcS
  2. /mnt/mtd/boot.sh
  3. /mnt/mtd/dep2.sh

All the DVR software is under /mnt/mtd/ and some runtime parts get unpacked on boot to /nfsdir/

Enabling a persistent root access

Since telnetd was already installed on the firmware image all I had to do was add /usr/sbin/telnetd to /etc/init.d/rcS and change the root password

Conclusion

As as side note, I was able to verify that this DVR uses the “Cross Web Server” so it is probably vulnerable to the recent Mirai attack.
