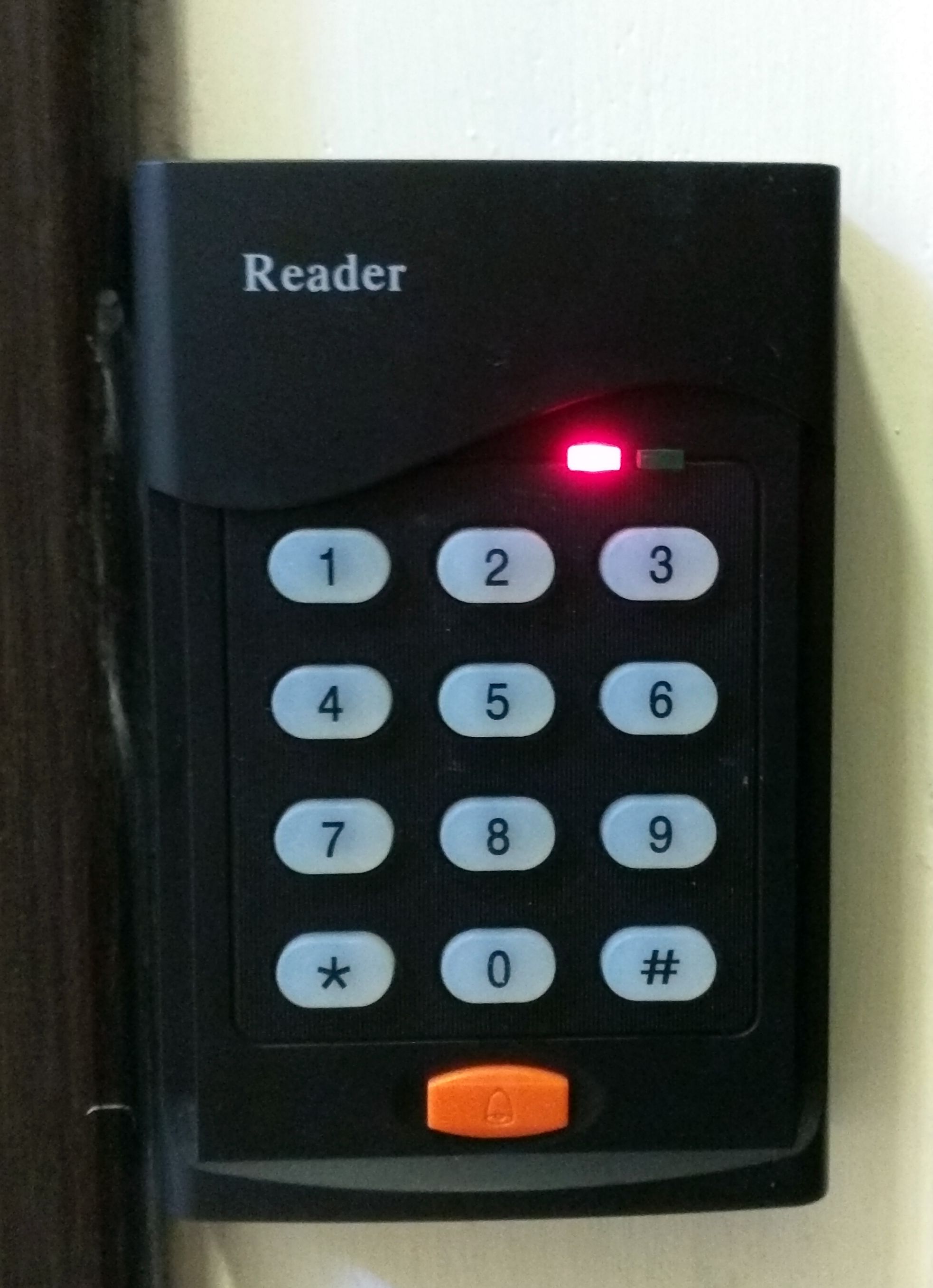

RFID card opens the door directly (does not affect arm/disarmed state)
armed
pin (4 digit) + # or * (disarm)
pin (4 digit) + repeat last digit (duress)
disarmed
pin (4 digit) + # (stay)
pin (4 digit) + * (leave)
pin (4 digit) + 0 (open door)
Adding a reader to a uC
Wire the reader to 12V
Add to config.cpp
#include "CardReader.h"
CardReader reader;
void initTasks(void){ // Called by setup()
reader.begin();
}
void p2loop(){ // Called from loop
reader.process();
}
void sendEventsToMaster(){ // Called from RS485Slave::processConnection
// Check if there is an outstanding reader event to piggy back
if(reader.lastEntry){
byte cardReaderEv[]={0x14}; // The extra frame format is Frametype (4bits), Framesize(4bits)
sendMsgPart (cardReaderEv, sizeof(cardReaderEv), false);
sendMsgPart ((byte *)&reader.lastEntry, sizeof(reader.lastEntry), false);
reader.lastEntry=0;
}
}
int loadEECfg(void){
EEPROM_SIZE_CFG(reader);
...
EEPROM_READ_CFG(reader);
}
On the PIN Usage sheet add
PA-Oeste D02 CARD_READER_D0 Green wire
PA-Oeste D03 CARD_READER_D1 White wire
PA-Oeste D06 CARD_READER_LED Blue wire
PA-Oeste D07 CARD_READER_BUZZ Yellow wire
Add an output to open a door (circuitos & automation sheet). This will add the users to the config file
PA_O01_D Pestillo puerta simulada PA-Oeste O03 Door strike
On the local device set the output for the door strike and other constants (config.h)
