Reversing a Solar Water Heater Sensor - GHBO1/SHBO1 (2021)
The GHBO1/SHBO1 is a temperature and level sensor for solar water heaters. It is manufactured by Sunhome Technology Co.,Ltd & Green Homebuilders Inc. The manufacturer does not provide information on how to use it. They only sell it as a replacement part for solar water heater controllers like the SR500.
Exploring the sensor

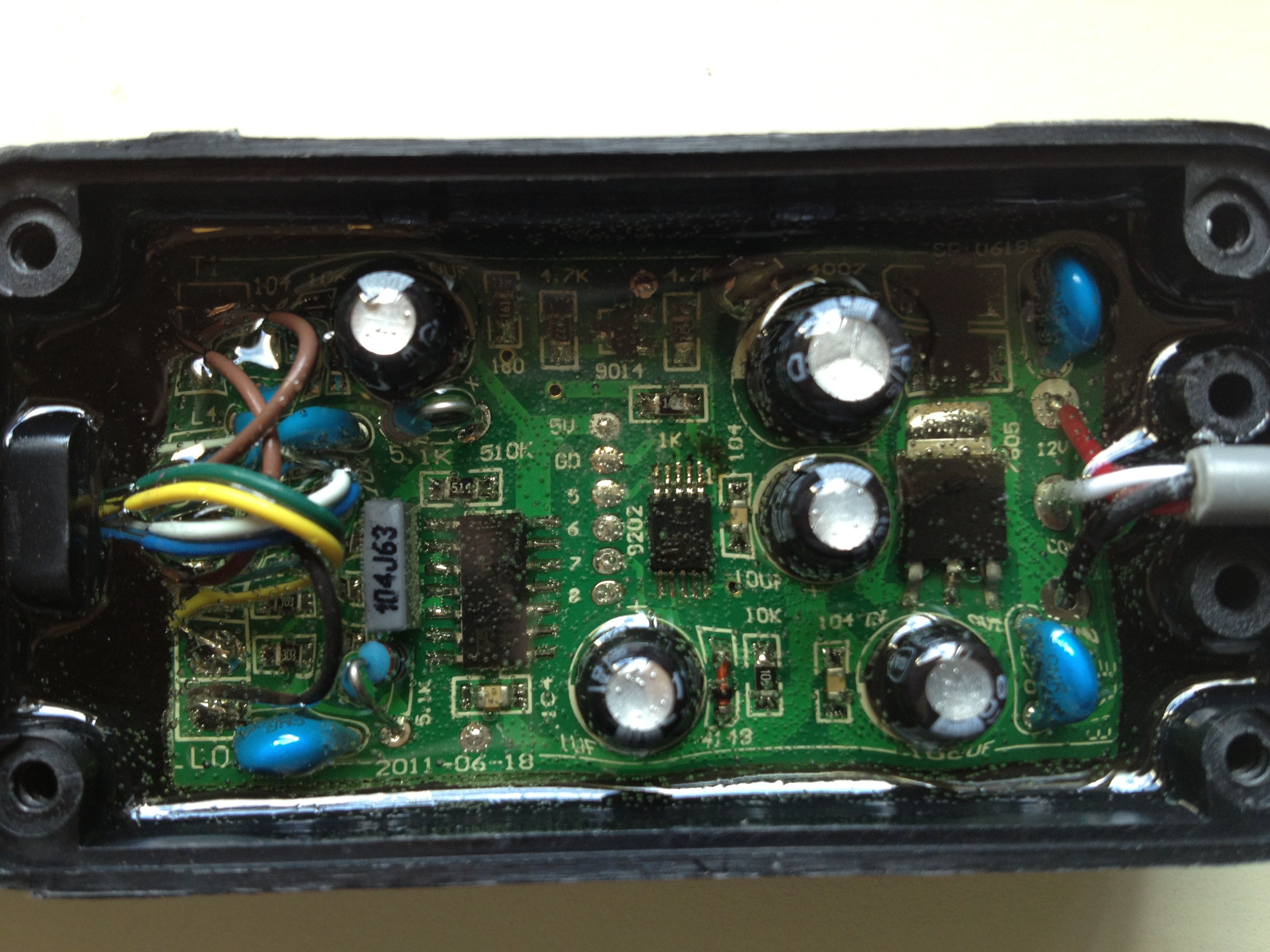

First I opened the case and noticed a couple of things
- It has a microcontroler so it was most likely using some sort of comm protocol
- It has voltage regulator and the red wire is labeled 12V (i.e. the black & red wires are power). Using a bench power supply I tested that it can work with 5V as well (not with 3.3V)
- On the left there are 7 wires going in. Two are labeled T1 and the other five L0 to L4. This led me to think that the level sensor was discrete (5 steps) and there was a single temp sensor
- I also noted the ICs labels 62AJ64M HC04 and the model on the PCB SR1061B3 but none yielded any results
Analyzing the comm protocol

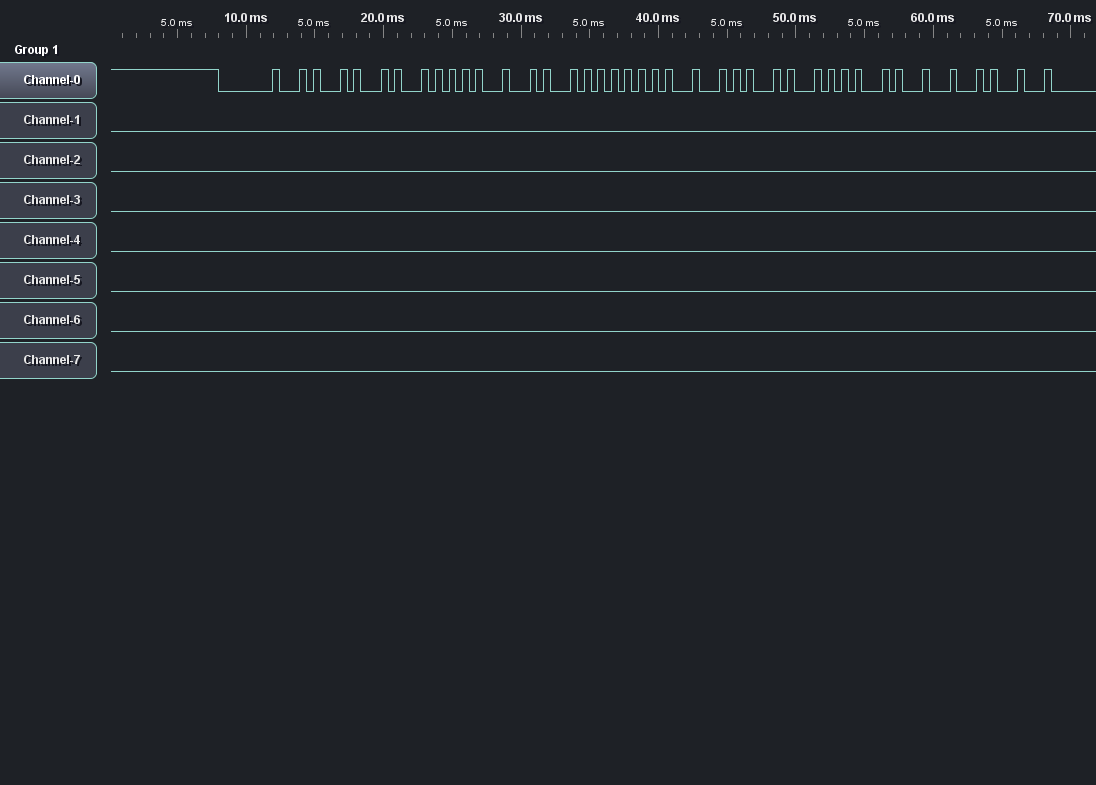

I first measured with a multimeter the white wire to check if the output was TTL. I found out that the output voltage matches the supply voltage (i.e. if VCC=5V then it behaves like TTL, but if VCC=12 volts then the data voltage is 12V). I then hooked the sensor to a logic analyzer I made using an Arduino mega (https://github.com/gillham/logic_analyzer) and an open source logic sniffer (http://www.lxtreme.nl/ols/). After fiddling with different sample rates I realized that the sensor was sending 70ms packets every 1 seconds (940ms). Each packet looks like this (shown at 50Khz sampling)
I realized that it looked a lot like a the packets used on IR controls. In fact I used https://github.com/cyborg5/IRLib to decode it and manage to do it with these parameters decodeGeneric(0,3800,0,1400,400,575,0). More generally what I found is that the protocol has a header bit followed by 40 bits encoded with varying. This is the exact timing in usec
- MARK_HEADER 7000
- SPACE_HEADER 3000
- MARK 500
- SPACE_ONE 1500
- SPACE_ZERO 600
Finally I put together a simple arduino sketch (see at the bottom of this page) to read the package and try to make sense of them. A typical packet looks like AA1A0328BB. After experimenting with bottles filled with water at different levels & temperatures I found this
- AA → Constant. It never changed on my experiments
- 1A → Temperature in Celsius. In this case 26c
- It seems that the temperature sensor is located towards the top of the stick
- 03 → Water level as a discrete value from 0 to 4
- Level 0 spans from empty to a fifth of the stick
- 28 → Constant. It never changed on my experiments
- BB → Some sort of checksum that I did not bother to decode
Additional Resources
For those interested in diving deeper into the reverse engineering process, you can browse the Exploration directory on GitHub, which contains Arduino sketches, logic analyzer tools, raw recordings, and statistical analysis from the original research.
Arduino routine for reading the sensor
// Extracted from http://hack4life.pbworks.com/Arduino%20Solar%20Water%20Heater%20Sensor
const int inPin = 22;
void setup() {
pinMode(inPin, INPUT);
Serial.begin(9600);
}
#define TIMEOUT 50000
#define MARK_HEADER 7000
#define SPACE_HEADER 3000
#define MARK 500
#define SPACE_ONE 1500
#define SPACE_ZERO 600
int expectPulse(int val){
unsigned long t=micros();
while(digitalRead(inPin)==val){
if( (micros()-t)>TIMEOUT ) return 0;
}
return micros()-t;
}
// temp in celsious and level goes from 0 to 3
bool readTempNLevelSensor(char inPin, char &temp, char &level){
byte data[5]={0,0,0,0,0};
unsigned long val1;
unsigned long st=micros();
val1 = expectPulse(HIGH);
if(val1>MARK_HEADER){
val1 = expectPulse(LOW);
if(val1>SPACE_HEADER){
int c=39;
for(;c>-1;c--){
val1 = expectPulse(HIGH);
if(val1<MARK){
val1 = expectPulse(LOW);
if(val1==0){
//Serial.println("Mark error 0");
break;
}
if(val1<SPACE_ZERO){
//0
//data[c>>3]|=(1<<(c & B111));
}else if(val1<SPACE_ONE){
//1
data[c>>3]|=(1<<(c & B111));
}else{
//Serial.print(val1);Serial.println(" Space error");
break;
}
}else{
//Serial.println("Mark error");
break;
}
}
// Each reading should not take more than 70ms (use time to detect errors)
if(micros()-st<70000){
temp=data[3];
level=data[2];
//Serial.print(data[3]);Serial.print(" ");Serial.println((data[2]));
//Serial.print(data[4],HEX);Serial.print(" ");Serial.print(data[3],HEX);Serial.print(" ");Serial.print(data[2],HEX);Serial.print(" ");Serial.print(data[1],HEX);Serial.print(" ");Serial.println(data[0],HEX);
return true;
}
}
}
return false;
}
void loop() {
char temp,level;
if(readTempNLevelSensor(inPin, temp, level)){
Serial.print(temp,DEC);Serial.print("c ");Serial.println(level,DEC);
}
}
Wemos D1 mini code for reading the sensor
This is hdelaroza’s code to integrate the sensor via MQTT with Home Assistant
#include <SimpleTimer.h> //https://github.com/jfturcot/SimpleTimer
#include <PubSubClient.h> //https://github.com/knolleary/pubsubclient
#include <ESP8266WiFi.h>
#include <ESP8266mDNS.h>
#include <WiFiUdp.h>
#include <ArduinoOTA.h> //https://github.com/esp8266/Arduino/tree/master/libraries/ArduinoOTA
//////////////////////////////////////////
#include <ESP8266WebServer.h>
//USER CONFIGURED SECTION START//
const char* ssid = "MY_WIFI_NETWORK";
const char* password = "MY_WIFI_PASSWORD";
const char* host = "termotanque_sensor";
const char* mensaje = "Sensor termotanque solar: ";
const char* mqtt_server = "MY_MQTT_SERVER";
const int mqtt_port = 1883;
const char *mqtt_user = "MY_MQTT_USERNAME";
const char *mqtt_pass = "MY_MQTT_PASSWOR";
const char *mqtt_client_name = "termotanque_sensor"; // Client connections can't have the same connection name
const int inPin = 15; //D8, pin where the sensor is connected (has pulldown resistor)
//long lastPub=0;
char temp,level;
char temp2=-1,level2=-1;
String mensaje_mqtt;
#define TIMEOUT 50000 // in microseconds
#define MARK_HEADER 7000
#define SPACE_HEADER 3000
#define MARK 520
#define SPACE_ONE 1530
#define SPACE_ZERO 600
//USER CONFIGURED SECTION END//
ESP8266WebServer server(80);
WiFiClient espClient;
PubSubClient client(espClient);
SimpleTimer timer;
bool boot = true;
//Functions
void setup_wifi() {
// We start by connecting to a WiFi network
Serial.println();
Serial.print("Connecting to ");
Serial.println(ssid);
WiFi.mode(WIFI_STA); //SACO EL FaryLink
WiFi.hostname(host);
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
Serial.println("");
Serial.println("WiFi connected");
Serial.println("IP address: ");
Serial.println(WiFi.localIP());
}
void reconnect()
{
// Loop until we're reconnected
int retries = 0;
while (!client.connected()) {
if(retries < 15)
{
Serial.print("Attempting MQTT connection...");
// Attempt to connect
if (client.connect(mqtt_client_name, mqtt_user, mqtt_pass))
{
Serial.println("connected");
// Once connected, publish an announcement...
if(boot == true)
{
client.publish("checkIn/termo_solar","Rebooted");
boot = false;
}
if(boot == false)
{
client.publish("checkIn/termo_soalar","Reconnected");
}
// ... and resubscribe
client.subscribe("doorbell/commands");
}
else
{
Serial.print("failed, rc=");
Serial.print(client.state());
Serial.println(" try again in 5 seconds");
retries++;
// Wait 5 seconds before retrying
delay(5000);
}
}
if(retries > 14)
{
ESP.restart();
}
}
}
void checkIn()
{
client.publish("checkIn/TermoSolar","OK");
}
//TERMO SOLAR
int expectPulse(int val){
unsigned long t=micros();
while(digitalRead(inPin)==val){
if( (micros()-t)>TIMEOUT ) return 0;
}
return micros()-t;
}
bool readTempNLevelSensor(char inPin, char &temp, char &level){
byte data[5]={0,0,0,0,0};
unsigned long val1;
unsigned long st=micros();
val1 = expectPulse(HIGH);
if(val1>MARK_HEADER){
val1 = expectPulse(LOW);
if(val1>SPACE_HEADER){
int c=39;
for(;c>-1;c--){
val1 = expectPulse(HIGH);
if(val1<MARK){
val1 = expectPulse(LOW);
if(val1==0){
Serial.println("Mark error 0");
break;
}
if(val1<SPACE_ZERO){
//0
//data[c>>3]|=(1<<(c & B111));
}else if(val1<SPACE_ONE){
//1
data[c>>3]|=(1<<(c & B111));
}else{
Serial.print(val1);Serial.println(" Space error");
break;
}
}else{
Serial.print(val1);Serial.println(" Mark error");
break;
}
}
// Each reading should not take more than 70ms (use time to detect errors)
if(micros()-st<70000){
temp=data[3];
level=data[2];
//Serial.print(data[3]);Serial.print(" ");Serial.println((data[2]));
//Serial.print(data[4],HEX);Serial.print(" ");Serial.print(data[3],HEX);Serial.print(" ");Serial.print(data[2],HEX);Serial.print(" ");Serial.print(data[1],HEX);Serial.print(" ");Serial.println(data[0],HEX);
return true;
}
}
}
return false;
}
//Run once setup
void setup() {
pinMode(inPin, INPUT);
Serial.begin(115200);
setup_wifi();
client.setServer(mqtt_server, mqtt_port);
// client.setCallback(callback);
ArduinoOTA.setHostname("termo_solar");
ArduinoOTA.begin();
timer.setInterval(120000, checkIn);
// timer.setInterval(500, getFrontState);
// timer.setInterval(200, getTermoSolar);
//////////////////////////////////////////
server.on("/other", []() { //Define the handling function for the path
server.send(200, "text / plain", "Other URL");
});
server.on("/", handleRootPath); //Associate the handler function to the path
server.begin(); //Start the server
Serial.println("Server listening");
//////////////////////////////////////////
}
void loop()
{
if (!client.connected())
{
reconnect();
}
////////////////////////////////////////////////////
server.handleClient(); //Handling of incoming requests
///////////////////////////////////////////////////
client.loop();
ArduinoOTA.handle();
if(readTempNLevelSensor(inPin, temp, level)){
// Serial.print(temp,DEC);Serial.print("c ");Serial.println(level,DEC);
// mensaje_mqtt = String(int (temp))+String(int (level));
}
if ((temp==temp2)|| (level==level2)){
mensaje_mqtt = "{\"Temperature\":\"" +String(int (temp))+"\",\"Level\":\""+String(int (level))+"\"}";
Serial.println(mensaje_mqtt);
char charBuf[mensaje_mqtt.length() + 1];
mensaje_mqtt.toCharArray(charBuf,mensaje_mqtt.length() + 1);
client.publish("TermoSolar", charBuf);
}
temp2=temp;
level2=level;
timer.run();
}
///////////////////////////////////////////////////////////////
void handleRootPath() { //Handler for the rooth path
server.send(200, "text/plain", mensaje_mqtt);
}
///////////////////////////////////////////////////////////////
